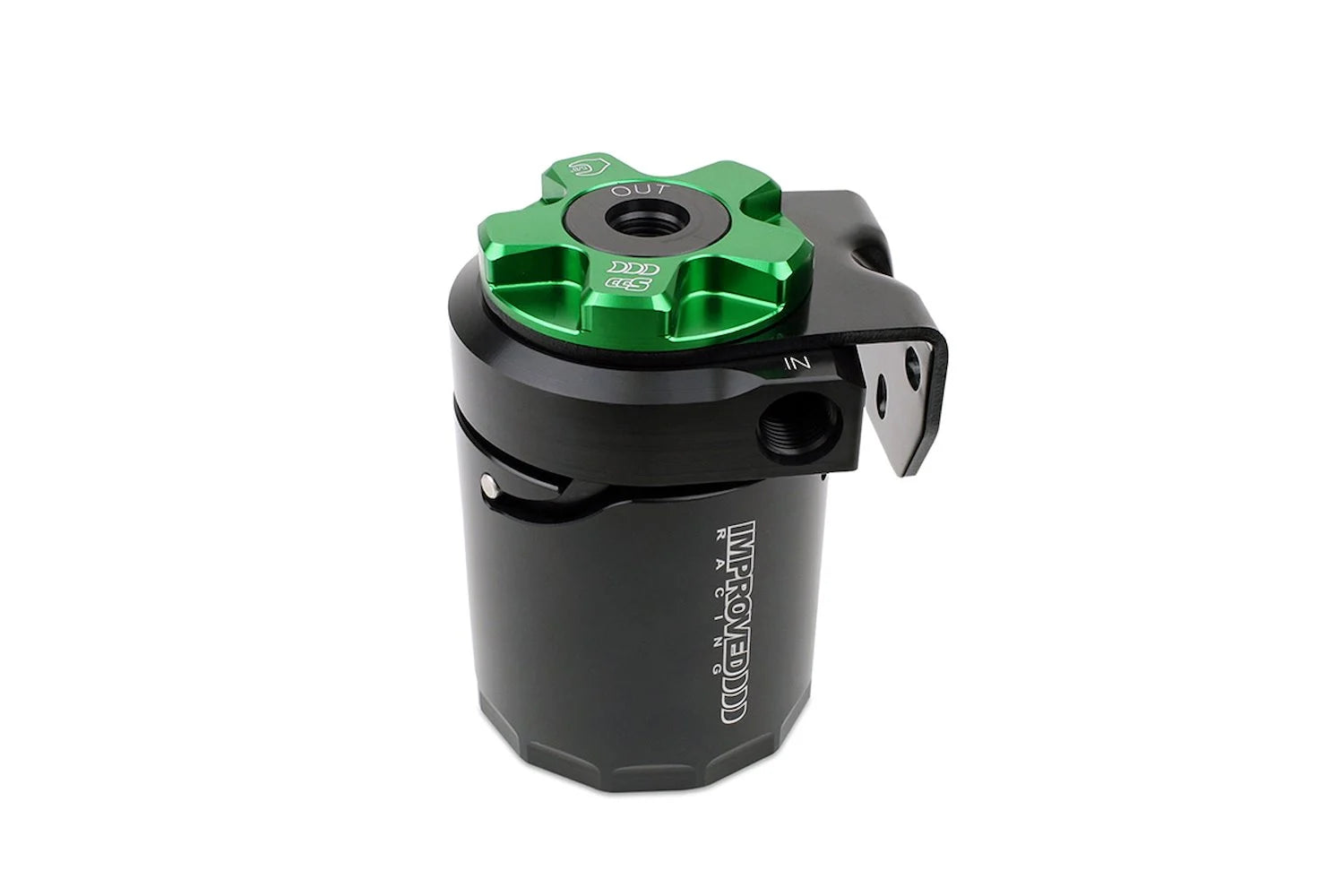

Improved Racing CCS Oil Catch Can Kits CCS-GM-101

Fitment / Compatibility

This catch can kit is designed for use on factory supercharged vehicles. (If your application is Corvette, you would tag the specific generation, e.g. Corvette C7 Z06, etc.)

Key Features & Benefits

• The CCS (Cyclonic Catch Separator) is engineered to maximize air-oil separation efficiency, achieving peak separation efficiency of 85% to 90% under testing conditions.

• Uses a tangential entry port to create a cyclonic flow, helping separate oil vapor from crankcase blow-by with minimal flow restriction.

• Internal stainless-steel filter with multiple filter seals ensures secondary retention of vaporized oil.

• Features a bell mouth exit plenum, anti-splashback funnel with spiral drain grooves, and high integrity primary seals.

• Reservoir options: 7.0 fl oz (~207 mL) or 3.5 fl oz (~104 mL).

• Quick-turn, tool-free reservoir removal (push up + ⅛ turn) allows you to inspect or service without removing the entire unit.

• A wave spring holds the reservoir firmly in place; an included safety lock clip gives added security on the track.

• Mounting:

  • CNC-machined aluminum bracket rotates in 22.5° increments to allow flexible orientation and clearance management.
  • Tool-free bracket nut enables fast removal or snug mounting (5/8 in or 16 mm wrench).

• Supplied mounting bracket, custom routing lines, and quick-connect fittings — designed to be emission-friendly for factory forced-induction systems.

• Optional remote drain kit available (sold separately) to facilitate draining in tight engine bay spaces without removing the can.
