DeWitts Pro-Series Radiator Modules for 2005-2011 CORVETTE - 32-4139125A

DeWitts Pro-Series Aluminum Radiator Module – Direct Fit for Corvette

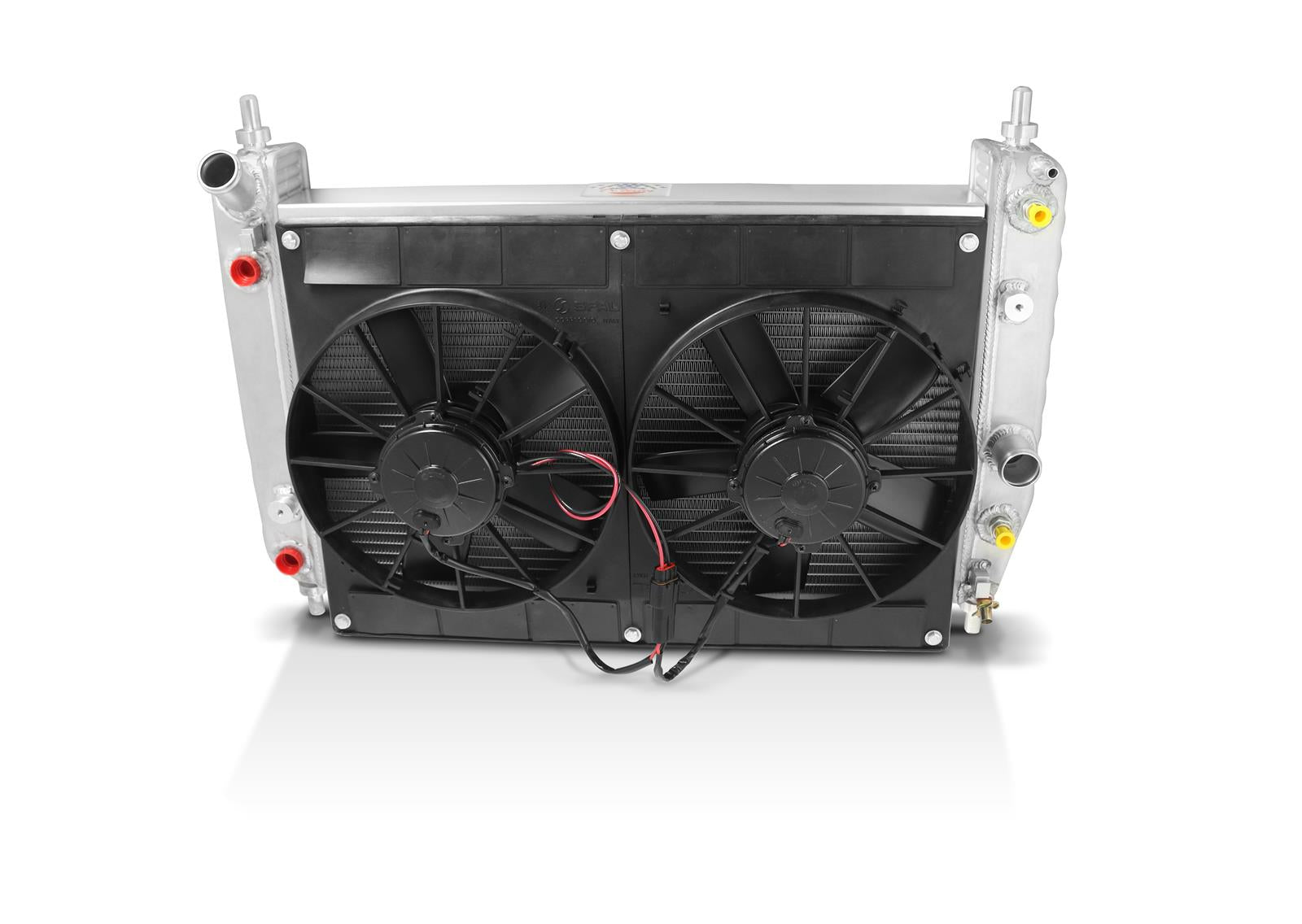

Upgrade your C5 Corvette’s cooling performance with the DeWitts Pro-Series 32-4139125A aluminum radiator module. Designed as a direct-fit replacement, this crossflow radiator installs easily using factory mounting points and connections, requiring no modifications or adapters. Crafted from durable aluminum with furnace-brazed epoxy-free cores and TIG-welded end tanks, it delivers exceptional strength, heat dissipation, and long-lasting reliability. The radiator measures 29.00 inches wide, 15.00 inches tall, and 3.25 inches thick, with a core width of 23.50 inches, core height of 15.00 inches, and a core thickness of 2.25 inches. It features a built-in transmission cooler, 1.25-inch inlet and outlet tubes, and two rows of 1-inch cooling tubes with a serpentine fin design for optimal airflow. Dual 11-inch Spal electric fans are included, providing a maximum 2,780 CFM, with a 26.0-amp rating, a plastic blade design, and an aluminum shroud finished in natural color.

This radiator is compatible with C5 Corvettes (1997–2004), including Base, Z06, and other trims equipped with factory coolant and engine configurations. It is sold individually and does not include a radiator cap.

Key Features & Highlights: Direct-fit installation using factory mounting points, durable furnace-brazed aluminum construction, dual electric fans for superior cooling, built-in transmission cooler, epoxy-free core with TIG-welded end tanks, high-performance serpentine fins for maximum airflow.
